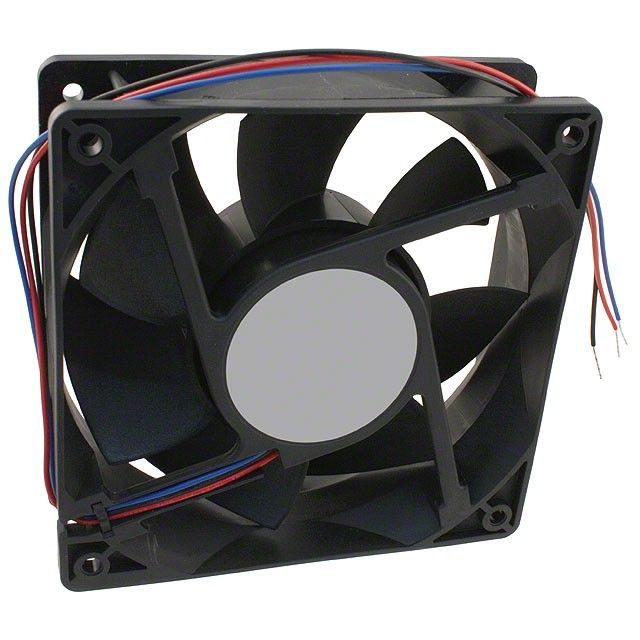

AFB1224SHE
Data Sheet
Attribute
Description
Manufacturer Part Number
AFB1224SHE
Manufacturer
Description
DC Fans,
Tubeaxial,
24VDC
Note :
GST will not be applied to orders shipping outside of India
Stock: 196
Distributor: 2
Lead Time: Not specified
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 1,270.50 | ₹ 1,270.50 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| DC Fan Type | Tubeaxial | |
| DC Fan Bearing Type | Ball | |
| Voltage Rating | 24VDC | |
| Air Flow | 151.8 CFM (4.30m³/min) | |
| Static Pressure | 0.571 in H2O (142.2 Pa) | |
| Noise | 53 dB(A) | |
| Power | 12.0W | |
| RPM | 3700 RPM | |
| Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) | |
| Termination | 2 Wire Leads | |
| Size / Dimension | Square - 120mm L x 120mm H x 38mm W |
Description
Measures resistance at forward current Tubeaxial for LED or diode evaluation. Supports high-level output current indicated as 151.8 CFM (4.30m³/min). Peak Vce(on) at Vge 0.571 in H2O (142.2 Pa) for transistor parameters.
